Best Lithium Batteries for RV Solar: Top Picks

Required accessories vary by panel and battery; check the manufacturer specification for the model you are considering. Lead-acid chemistries struggle on all three counts, which is why LiFePO4 (lithium iron phosphate) has become the default chemistry for serious RV solar builds. The shift mirrors what happened in the marine and overland segments a few years earlier: once the per-cycle economics, weight savings, and charge-acceptance advantages were quantified against real-world duty cycles, the premium over AGM stopped looking like a luxury and started looking like baseline infrastructure for anyone planning to spend meaningful time off shore power.

Why Lithium Batteries Are Best for RV Solar

The pairing of LiFePO4 chemistry with RV solar is largely about three engineering constraints: usable depth of discharge (DoD), charge acceptance, and cycle life. A 100Ah lead-acid battery realistically delivers roughly half of its rated capacity before voltage sag and sulfation become problems; LiFePO4 at the same nameplate rating delivers a much higher usable fraction per the manufacturer’s recommended DoD, with a flat discharge curve that keeps inverter loads stable down to a low state of charge.

Beyond those headline constraints, second-order effects matter for solar builds. Lead-acid banks lose effective capacity as they age and as cycling depth increases; a three-year-old AGM bank may deliver noticeably less usable energy than its nameplate suggests, which silently shortens boondock duration. LiFePO4 capacity fade is more gradual and more predictable per manufacturer documentation, which makes long-term system sizing easier. The flat voltage curve also means that solar charge controllers spend more time in bulk and less time tapering in absorption, harvesting a larger fraction of available panel output during the limited midday window when irradiance is high.

Our Top Picks

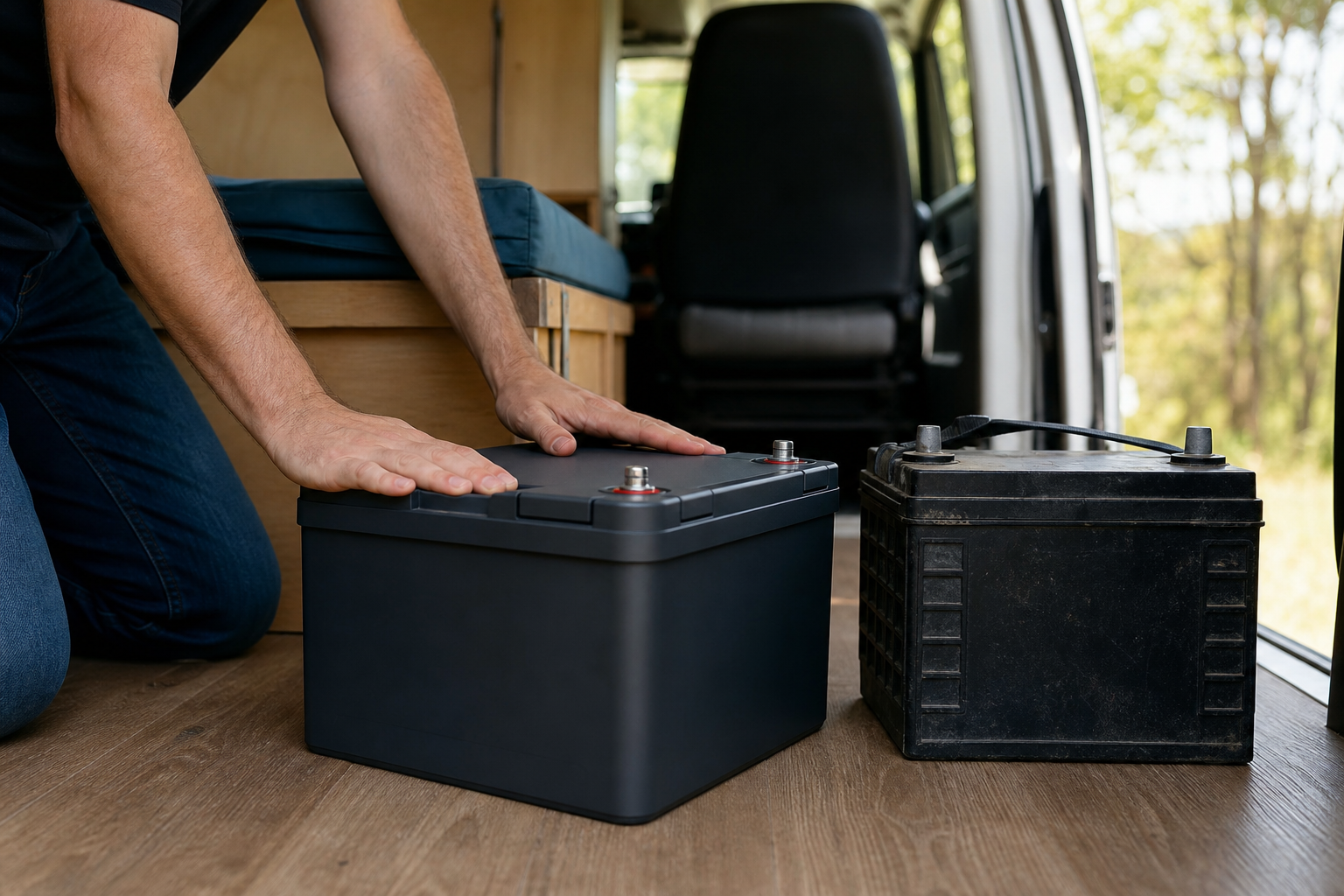

Lithium vs. AGM and Lead-Acid

AGM and flooded lead-acid batteries have dominated RV house banks for decades because they are inexpensive and tolerant of mediocre charging. They are also heavy, voltage-sag-prone under inverter loads, and limited in cycle count at deep DoD. LiFePO4 reverses every one of those trade-offs: lighter weight per usable amp-hour, near-flat resting voltage, and substantially higher cycle counts at deeper DoD per manufacturer guidance. The capital cost is higher, but the cost-per-usable-cycle is significantly lower.

For solar specifically, LiFePO4 accepts charge at much higher C-rates than lead-acid. AGM bulk charging is typically throttled well below the rated capacity in amps, while a comparable LiFePO4 will usually accept a much higher continuous charge current. In practical terms, a 600W rooftop array feeding an AGM bank may spend much of a sunny afternoon in tapered absorption while the panels are clipped well below their potential; the same array feeding a LiFePO4 bank of comparable nameplate capacity often pushes full panel output into the battery until the bank is genuinely full, then transitions cleanly to float.

Weight is the other often-overlooked factor. Check the current product listing for dimensions and weight before planning the installation. For Class B and Class C builds where every pound of payload competes with water, fuel, and gear, that weight delta is often the deciding factor independent of cycle-life math.

Key Benefits for Boondocking and Off-Grid

Off-grid, the limiting factor is almost always usable kWh between solar sessions. Roughly doubling usable energy per pound — the practical effect of a lithium swap — extends boondock duration without re-engineering the trailer’s axle ratings or hitch weight. The flat discharge curve also means the inverter sees a stable bus voltage across most of the SOC range, reducing low-voltage cutout nuisance trips when running induction loads or air conditioning soft-start kits.

The charging side benefits are equally important. When you only get four or five hours of usable sun on a winter day, every amp the battery can accept during that window translates directly into kWh available for the following night. Lead-acid acceptance falls off sharply as state of charge rises above roughly 80%, which means the last 20% of recharge can take longer than the first 80%. LiFePO4 maintains high acceptance much further up the SOC curve, so a partial-day solar session recovers a larger fraction of the previous night’s draw. Over a multi-day cloudy stretch, that difference compounds into whether you make it to the next sunny day with reserve or whether you fire up a generator.

How to Choose a Lithium Battery for RV Solar

Capacity (Ah) and Usable Energy

Rated capacity at the 12V nominal level converts closely to usable energy with LiFePO4 when operated within the manufacturer’s recommended DoD window. A 100Ah 12V battery stores approximately 1.28 kWh nameplate; the usable fraction depends on the specific BMS cutoffs and recommended cycling depth. Weekend boondockers typically size 200–400Ah of lithium; full-timers running residential refrigerators and occasional AC commonly land at 400–600Ah or more.

To size more precisely, build a watt-hour budget. List each DC and AC load, estimate hours per day, and sum the daily watt-hours. A 12V compressor refrigerator might draw 40W average with a 40% duty cycle, or roughly 380 Wh/day. LED lighting for four hours across the rig might add 60 Wh. Inverter-fed loads add up quickly; Check the manufacturer datasheet for the current electrical rating before using this product in an RV solar system. Sum the total, divide by nominal bus voltage to get amp-hours, and multiply by a headroom factor (typically 1. 5x to 2x) to account for cloudy days, aging, and unplanned loads.

Voltage and Battery Bank Sizing

Most RV systems remain 12V nominal because of legacy converter, lighting, and pump compatibility. Banks above ~400Ah benefit from a 24V or 48V architecture to reduce conductor size and inverter DC input current. Check the manufacturer datasheet for the current electrical rating before using this product in an RV solar system. The same inverter at 48V draws about 60A, which dramatically simplifies wiring.

The trade-off with higher-voltage banks is that all existing 12V loads — lights, pumps, fans, the furnace board, the slide motors — still need 12V supply, which means adding a DC-DC converter to step the bank voltage down for the chassis bus. For new builds or major rewires this is usually worth it; for modest upgrades to existing rigs, staying at 12V and paralleling more modules is often the path of least resistance even though it leaves wiring efficiency on the table.

BMS,, and

Every LiFePO4 RV battery should include an integrated BMS handling cell balancing, overcurrent, overvoltage, undervoltage, and low-temperature charge cutoff. The low-temp cutoff matters most for RV use: charging LiFePO4 below 32°F (0°C) causes lithium plating and permanent capacity loss. A BMS that disconnects the charge path below freezing is essential; whether the battery additionally has internal self-heating is a separate feature worth confirming on the manufacturer’s current spec sheet if you camp in shoulder seasons.

Parallel and series limits vary by battery model, BMS design, and manufacturer documentation. Check the exact manual before wiring multiple batteries together. It lets you see individual cell voltages, BMS temperature, charge and discharge current in real time, and recent fault history. When a bank under-performs, that telemetry is the difference between diagnosing the issue in minutes and pulling batteries one at a time to bench-test. For multi-module banks, the ability to spot a single weak cell drifting out of balance before it forces a BMS disconnect can save a trip-ending failure.

Charge/Discharge Rates and Inverter Compatibility

The two relevant numbers are continuous discharge current (which sets inverter sizing) and recommended charge current (which sets solar array and charge controller sizing). Parallel and series limits vary by battery model, BMS design, and manufacturer documentation. Check the exact manual before wiring multiple batteries together.

The inverter will run normally at light loads, but the moment you start a microwave or pull a surge, the BMS trips on overcurrent and the inverter throws a low-voltage error. Paralleling a second 100Ah module roughly doubles the available discharge current and provides headroom for surge events. For 3000W inverters, three to four 100Ah modules in parallel — or a single 200Ah module with a sufficiently rated BMS — is the typical minimum.

Product Details

Battle Born 100Ah LiFePO4

Battle Born’s 100Ah 12V is the reference design most RV solar installers benchmark against. The cells are LiFePO4, the BMS is conservative, and the form factor approximates a traditional lead-acid case, which simplifies tray and hold-down reuse during an AGM swap. For a typical small-to-mid rooftop solar array feeding a pure sine inverter, two or three Battle Borns in parallel produce a balanced bank that comfortably finishes absorption on a sunny day.

The conservative BMS is part of what makes Battle Born the default recommendation in many RV-focused installer networks: the trip thresholds are set to protect the cells under a wide range of edge cases, which reduces warranty claims and field failures at the cost of slightly lower peak discharge numbers than some competitors advertise. For owners who prioritize predictability and long-term reliability over the absolute lowest cost per amp-hour, that conservatism is a feature rather than a limitation.

LiTime 100Ah 12V

LiTime (formerly branded Ampere Time) targets the budget end of the 100Ah LiFePO4 segment. The chemistry is the same LiFePO4 as premium brands, the BMS handles standard protections, and the per-amp-hour price is materially lower than legacy U.S. brands. For builders putting together a first lithium upgrade — replacing a single AGM and adding a modest solar array — LiTime hits an attractive cost point.

The value proposition is straightforward: the underlying cells are sourced from the same broader Chinese LiFePO4 supply chain that feeds many premium brands, and at the 100Ah level the BMS designs across budget vendors have converged on similar feature sets. Where premium brands distinguish themselves is in cell matching tolerances, post-sale support, and warranty responsiveness in North America. For builders comfortable with self-installation and basic troubleshooting, the cost savings can be redirected into a larger solar array or a better charge controller.

Redodo 200Ah 12V

For larger rigs — fifth-wheels, Class A diesel pushers, toy haulers running residential refrigerators — a 200Ah single-case module reduces parallel connections, busbar count, and overall installation complexity. Parallel and series limits vary by battery model, BMS design, and manufacturer documentation. Check the exact manual before wiring multiple batteries together. Pair two for a larger bank with redundancy.

The single-case design has installation advantages beyond simply fewer connections. Required accessories vary by panel and battery; check the manufacturer specification for the model you are considering. uneven cable resistance causes one battery to do more work than the other, accelerating wear on the harder-working module. A single 200Ah case eliminates that consideration entirely. It also reduces the number of terminal connections in the high-current path, which simplifies torque inspection and reduces the surface area where corrosion or loose hardware can develop into a hot spot.

The larger case will not fit standard automotive battery trays. Verify fit before buying against your battery bay measurements.

RELiON RB100-LT

RELiON’s LT-series is built for cold-climate use, where the standard concern — charging below freezing — is addressed at the battery level rather than relying on insulated boxes or external heating pads. For shoulder-season boondocking in mountain or northern environments, a battery with documented low-temperature charging behavior removes a failure mode from the system design. Verify the specific low-temperature charging range and any self-heating behavior on the manufacturer’s current datasheet before committing.

The alternative to a purpose-built cold-weather battery is to add an insulated, heated enclosure around a standard LiFePO4 module, with a thermostat-controlled heating pad drawing from the battery itself. That approach works but introduces parasitic draw that erodes the bank’s overnight reserve precisely when solar input is at its lowest. A battery with integrated cold-weather features keeps the heating logic inside the BMS, where it can be coordinated with charging state and disabled when the cells are warm enough to accept charge directly.

Renogy 100Ah Smart Lithium

Renogy’s lithium line integrates with the broader Renogy solar ecosystem (controllers, inverters, DC-DC chargers), which appeals to builders who want a single-vendor stack. The smart-series adds communication features for monitoring SOC, voltage, and BMS status. Confirm monitoring details and any required accessories on the current product listing, since these can vary by SKU revision.

Single-vendor stacks have real advantages for builders who do not want to spend time matching charge profiles across mismatched components. When the charge controller, inverter, DC-DC charger, and battery all speak the same protocol and share factory-default voltage setpoints, commissioning is largely a matter of physical installation. The trade-off is that you accept whatever performance ceiling that vendor’s components define; mixed-vendor builds can squeeze more performance out of the system by pairing best-in-class components, at the cost of more setup time.

Dakota Lithium 100Ah

The battery is positioned similarly to Battle Born in capacity and form factor, with marketing emphasis on cycle count and cold-weather performance. For an RV solar bank that will see daily heavy cycling for years, Dakota is a credible alternative to consider alongside Battle Born.

For full-time RV use, the cycle-life differentiation matters more than it does for weekenders. A battery cycled lightly perhaps fifty times a year will outlast its warranty regardless of which premium brand it carries. A full-timer cycling the bank daily — three hundred-plus cycles a year — actually approaches the rated cycle count within a realistic ownership window, at which point the difference between a battery rated for three thousand cycles and one rated for five thousand becomes financially meaningful.

Capacity Target by Use Case

Weekend use with LED lighting, a 12V fridge, water pump, and occasional inverter loads aligns with roughly a 200Ah bank (two 100Ah modules or one 200Ah). Full-time use with a residential refrigerator, induction cooking, or occasional air conditioning on solar pushes that target to 400–600Ah minimum, ideally on a 24V or 48V architecture. If you only run a furnace fan and lights overnight and recharge via tow vehicle, a single 100Ah battery is generally sufficient.

The most common sizing mistake is buying for the average day rather than the worst day. Size to the worst plausible scenario you actually expect to encounter rather than the spec-sheet ideal.

Climate and Charging Profile

If you camp exclusively in temperatures above freezing, a standard LiFePO4 with low-temp charge cutoff is adequate. If you ski-base, shoulder-season camp, or winter boondock, prioritize a battery with documented sub-freezing charging support, and confirm those low-temperature features on the manufacturer’s current datasheet. If your RV converter is not lithium-compatible, plan a DC-DC charger or solar-only charge path; older WFCO and Parallax converters often hold absorption voltage too low to fully charge LiFePO4.

The converter compatibility question deserves more attention than it usually gets in lithium upgrade discussions. A converter designed for AGM typically tops out around 13. 6V in float, which is too low to drive a LiFePO4 bank to 100% SOC. The bank will appear to charge — voltage will rise, current will taper — but it will stabilize at perhaps 80–85% actual SOC and stay there indefinitely as long as that converter is the primary charge source.

Comparison Table

As an Amazon Associate I earn from qualifying purchases.

Which One Should You Buy?

Use the comparison table above as a shortlist, then weigh each option against your own RV’s available mounting space, existing battery bank, controller configuration, and the way you actually travel and store the rig. The best choice depends on how the model fits your build, and checking the manufacturer specification of each finalist against your existing wiring is the surest way to avoid expensive returns.

Before placing an order, double-check the manufacturer specification and current product listing for the bundle contents, controller behavior, dimensions, warranty terms, and fit with the rest of your existing system. Confirm the listing reflects the current revision so the unit you receive matches the description above.

Safety & Common Mistakes

• Verify product specifications against your system voltage and current before purchasing.

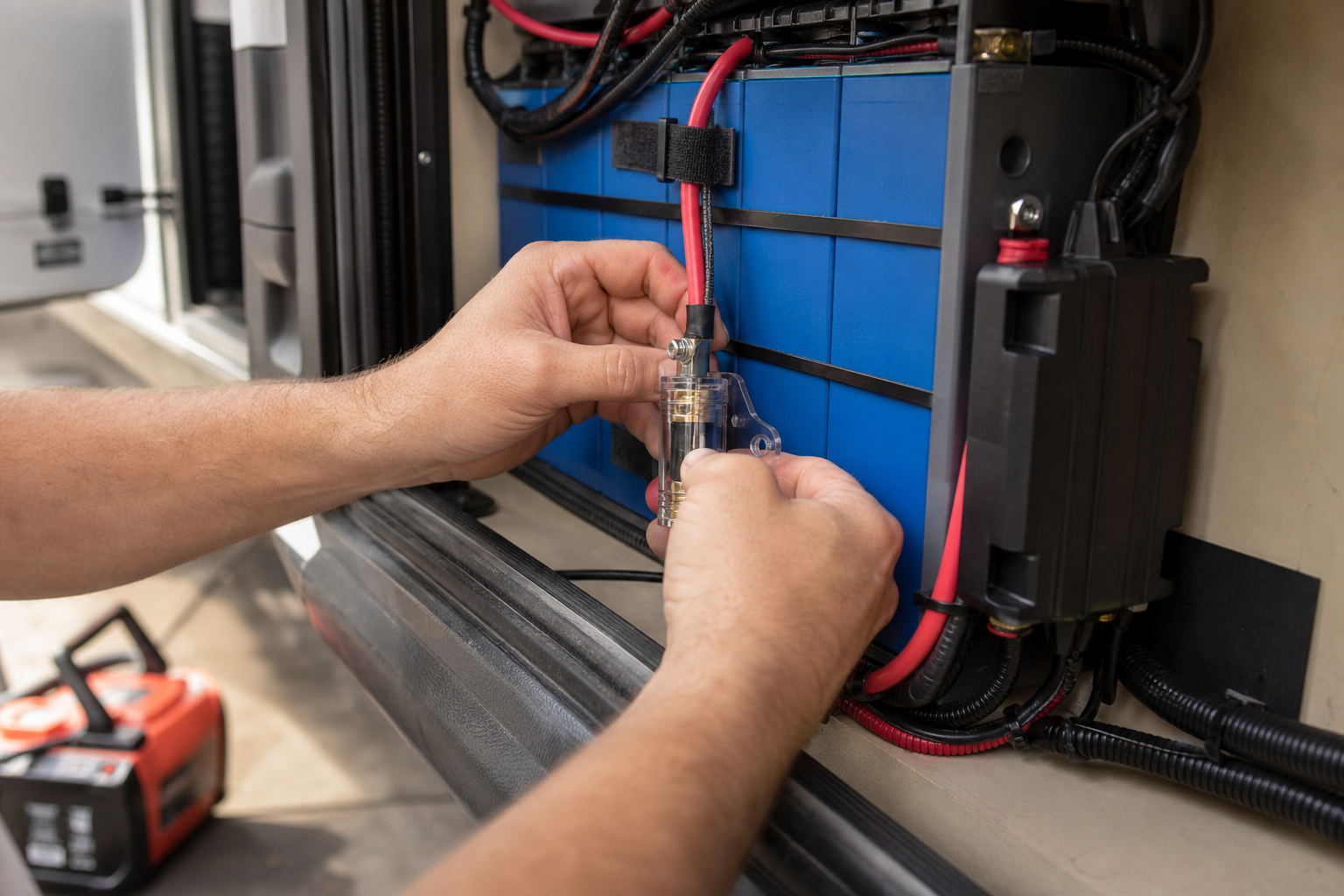

• Install a properly rated fuse or breaker on every positive conductor.
• Follow manufacturer wiring diagrams exactly — incorrect polarity can destroy components.
• De-energize circuits before making connections; use rated disconnects.
• Wear eye protection when working near batteries.

F00000

Conclusion

Compare the finalists on the specs that matter most to your setup — capacity, compatibility, and budget. Verify that your existing wiring and mounting can support the product before ordering.

FAQs

• How were these products selected and tested? See the buying guide and comparison sections above for specifics on best lithium batteries for rv solar. The right pick depends on your setup, your power budget, and the tradeoffs called out in the comparison table.
• What specs matter most for RV solar gear? See the buying guide and comparison sections above for specifics on best lithium batteries for rv solar. The right pick depends on your setup, your power budget, and the tradeoffs called out in the comparison table.
• Which options are best for cold climates? See the buying guide and comparison sections above for specifics on best lithium batteries for rv solar. The right pick depends on your setup, your power budget, and the tradeoffs called out in the comparison table.
• What warranty and support should I look for? See the buying guide and comparison sections above for specifics on best lithium batteries for rv solar. The right pick depends on your setup, your power budget, and the tradeoffs called out in the comparison table.
