How to Install RV Solar Panels: Step-by-Step Guide

Introduction

Every hole you drill in an RV roof is a potential leak, and every wire you undersize is a potential fire hazard — which is why a solar installation succeeds or fails on planning, not on the panels themselves. A typical DIY rooftop solar install involves four core components (panels, a charge controller, a battery bank, and optionally an inverter), one roof penetration for the cable entry, and a wiring run that must be fused correctly at both ends. Most competent DIYers complete the job over a weekend, but only if the layout, wire gauge, and sealing plan are settled before the first bracket touches the roof.

A quick note on numbers: the wattage your specific fridge, fan, or laptop draws varies enormously by model. Rather than handing you generic figures that may be wrong for your gear, this guide teaches you how to measure and calculate your own loads — the nameplate on each device, the manufacturer datasheet, and a clamp meter are your sources of truth.

What You’ll Need

Gather everything before you climb on the roof. Half-finished installs left overnight with an unsealed penetration are how water damage starts. Use this preparation checklist

• ☐ Solar panels — rigid glass panels for permanent roof mounts, or flexible panels if your roof is curved or you want an adhesive (no-drill) install. Confirm the rated wattage, open-circuit voltage (Voc), and short-circuit current (Isc) from each panel’s datasheet.
• ☐ Charge controller — MPPT controllers extract more usable power than PWM units when panel voltage runs above battery voltage, because they convert the excess voltage into charging current instead of discarding it. Verify the controller’s maximum input voltage exceeds your panels’ combined Voc (with a cold-weather margin) and its amp rating exceeds your array’s output.
• ☐ Battery bank — deep-cycle batteries (lithium iron phosphate, AGM, or flooded lead-acid). Know your bank’s usable amp-hour capacity — which depends on the chemistry and the manufacturer’s depth-of-discharge guidance — and its charging voltage requirements so you can program the controller correctly.
• ☐ Inverter (optional) — only required if you plan to run household AC appliances. Pure sine wave inverters are safer for electronics than modified sine wave units.
• ☐ Mounting hardware — Z-brackets or tilt mounts for rigid panels; VHB tape or panel adhesive for flexible panels. Include stainless steel screws and any spacers your roof type requires.
• ☐ Cable entry gland or combiner box — a weatherproof housing for the roof penetration where wires pass inside.
• ☐ Solar cable and connectors — UV-rated PV wire sized for your amperage and run length (undersized wire causes voltage drop and heat). MC4 connectors and a proper MC4 crimping tool, plus MC4 branch connectors if wiring in parallel.
• ☐ Fuses or breakers — one between the panels and charge controller, and one between the controller and battery bank, each sized to the manufacturer’s recommendation for that circuit.
• ☐ Battery cable and lugs — appropriately sized cable for the controller-to-battery and battery-to-inverter runs, with a lug crimper and heat shrink.
• ☐ Sealant — self-leveling lap sealant compatible with your roof membrane (EPDM, TPO, or fiberglass — check compatibility; the wrong sealant can degrade some membranes). Butyl tape for under mounting feet.

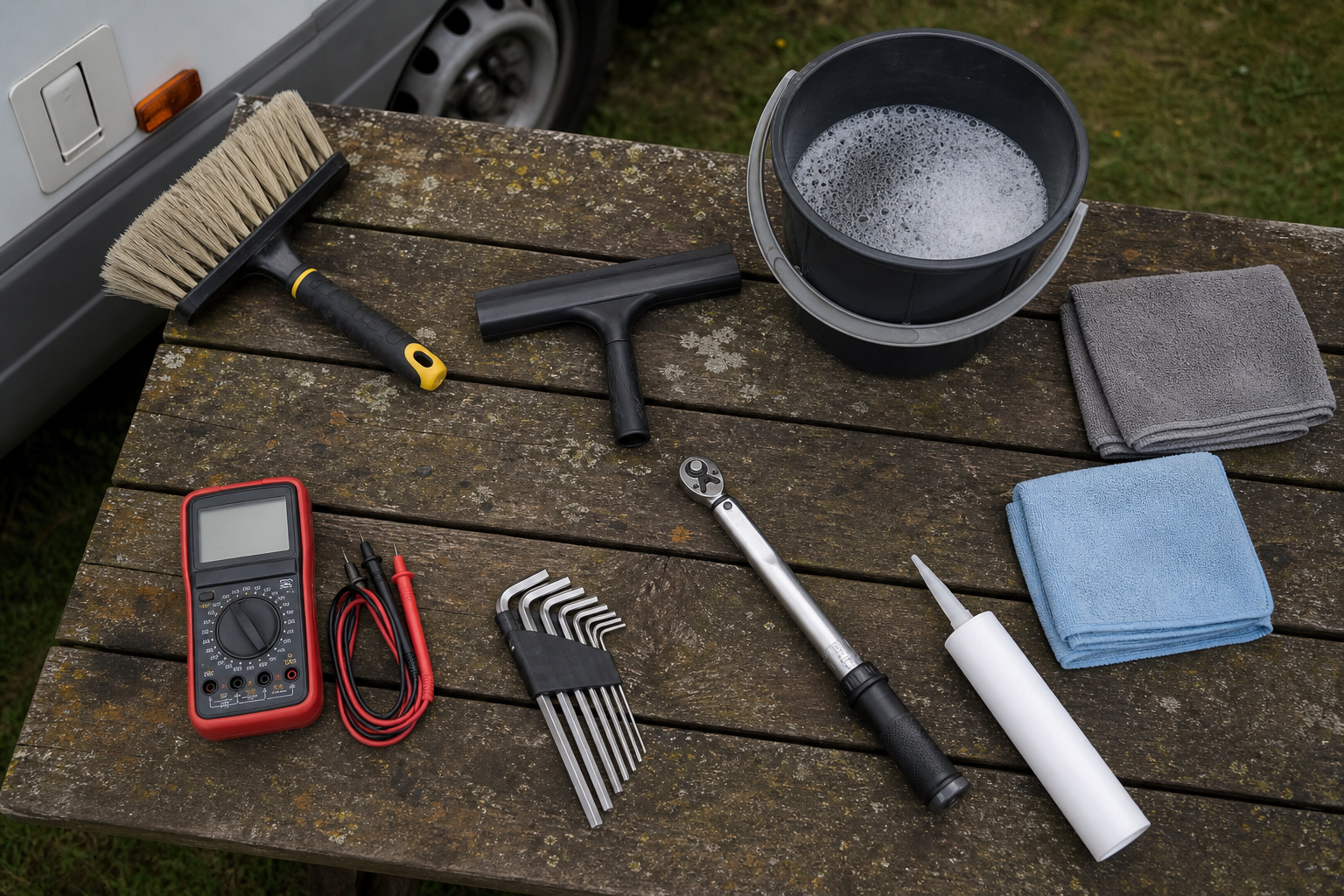

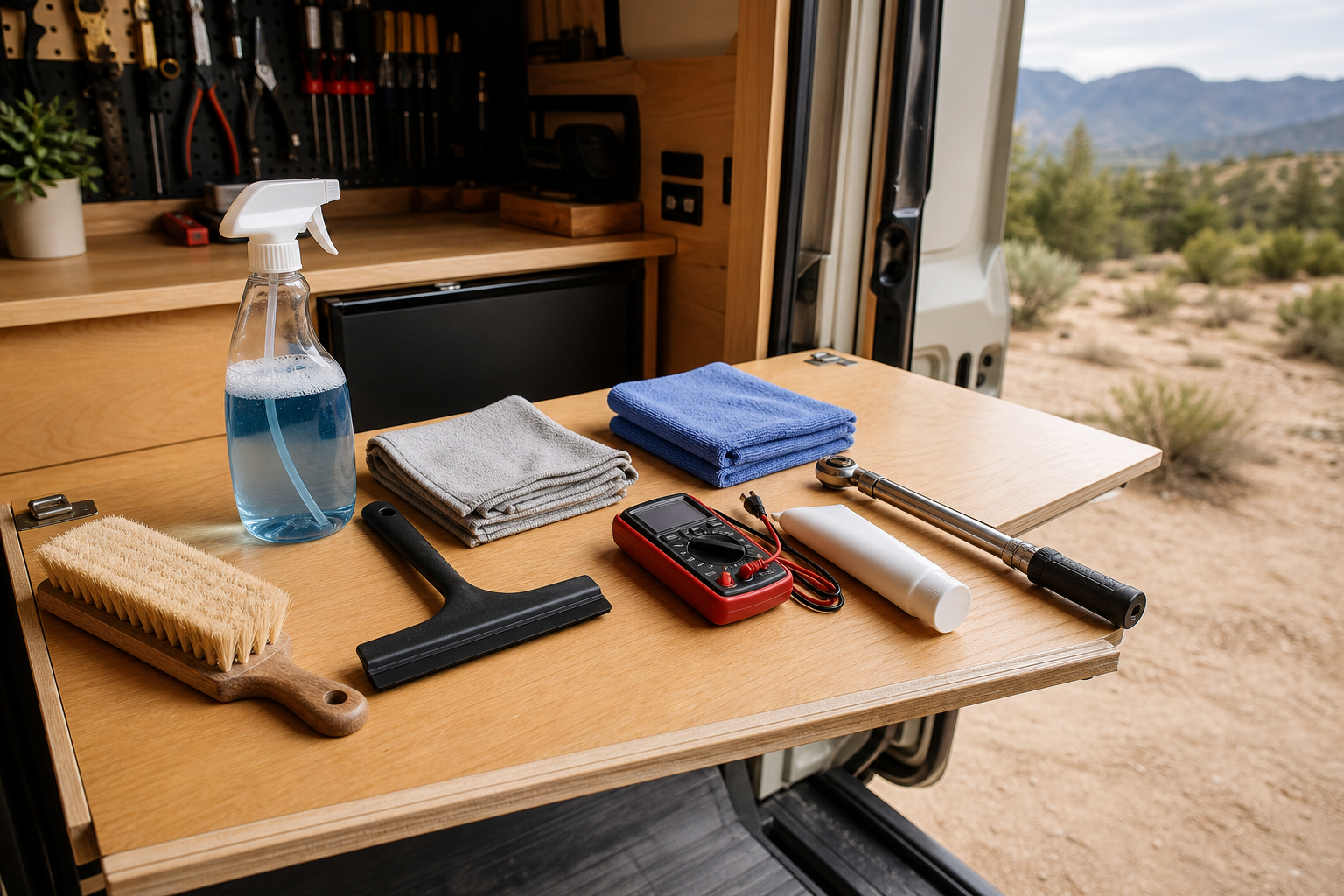

• ☐ Tools — drill and bits, screwdrivers, wire strippers, multimeter, clamp meter (helpful for load measurement), fish tape or a stiff wire for pulling cable, cable clamps, zip ties, and a caulk gun.
• ☐ Safety gear — non-slip shoes, gloves, safety glasses, and ideally a helper to spot you on the ladder and hand up panels.
• ☐ Documentation — the manuals for your charge controller, inverter, and batteries. You will need the controller’s programming instructions and the battery maker’s charge parameters.
• ☐ Weather window — a dry forecast for at least the mounting and sealing day. Sealant needs time to cure before rain.
• ☐ Roof inspection completed — verify your roof is sound, note the location of internal framing members if you plan to screw into structure, and map obstacles (vents, AC unit, antennas) before finalizing your layout.

Pre-install power audit (do this first): Before buying anything, list every device you’ll run off solar and fill in this worksheet from each item’s nameplate, datasheet, or a clamp-meter measurement. Do not guess — two fridges of the same size can have very different consumption.

Then size your array with this formula: required panel watts ≈ total daily watt-hours ÷ usable sun hours per day ÷ system efficiency factor. Sun hours depend on your travel region and season; the efficiency factor accounts for real-world losses from heat, wiring, controller conversion, and imperfect panel angle — a conservative install assumes meaningful losses rather than nameplate perfection. Size your battery bank so its usable capacity (per the manufacturer’s depth-of-discharge guidance for your chemistry) carries your daily demand through the night plus at least one cloudy day of reserve.

Mounting the Panels, Running the Cable, and Wiring the System

1. Finalize your roof layout and wiring plan on paper. Measure your roof and sketch panel positions around vents, the AC shroud, antennas, and skylights, leaving walking room for future maintenance. Watch for shading: even partial shade from an AC unit or roof rack can cut a panel’s output dramatically, and in a series string one shaded panel drags down the whole string. Decide now where the cable will enter the rig — the shortest practical run to the charge controller, which itself should sit close to the batteries. Also decide series vs. parallel: series wiring adds voltages (better in low light with an MPPT controller, requires a controller rated for the combined Voc), while parallel wiring adds current and keeps panels more independent under partial shade but demands thicker wire. Troubleshooting: if your combined series Voc approaches the controller’s input limit, remember cold temperatures raise panel voltage — apply the cold-weather correction factor from the panel datasheet, and if it exceeds the limit, split into parallel strings or choose a higher-voltage controller.
2. Prepare and dry-fit everything on the roof before drilling. Clean the roof surface where mounts or adhesive will go. Attach mounting brackets to the panels on the ground, then carry panels up (with a helper) and set them in their planned positions. Confirm cable lengths reach the entry point with slack, that no bracket lands on a seam or an obstruction, and that panel junction boxes face a direction that keeps wiring tidy. Mark every screw hole with a marker. Troubleshooting: if a marked hole lands on a roof seam or you cannot confirm what’s beneath it, shift the panel — never drill blind into a seam, wiring chase, or unknown cavity.
3. Mount the panels and seal every penetration. For drilled mounts: apply butyl tape under each bracket foot, drive stainless screws through the marked holes (into roof framing where possible, or use appropriate fasteners for your roof construction), then cover each bracket foot and screw head completely with self-leveling lap sealant compatible with your roof membrane. Drilled mounting is the most secure method for rigid panels and highway speeds. For adhesive mounts (flexible panels): clean the surface with isopropyl alcohol, apply the manufacturer-specified adhesive or VHB tape, press firmly, and respect the full cure time before driving. Troubleshooting: if sealant won’t adhere or bubbles, the surface was dirty or damp — remove, clean, dry, and reapply. Never trust screws alone to keep water out; the sealant is the waterproofing, the butyl is the backup.
4. Install the cable entry gland and run wiring into the RV. The cleanest options are a dedicated weatherproof cable entry gland or routing through an existing penetration such as a refrigerator vent or plumbing chase if one is conveniently located. If drilling a new hole, drill from the roof side at your marked point, deburr the hole, feed the PV cables through, and seat the gland in a bed of sealant, then seal around its base and the cable exits. Inside, use fish tape to pull cable through walls or cabinets toward the charge controller location, securing the run with clamps or zip ties every couple of feet so it cannot chafe against sharp edges. Leave a drip loop in the cable on the roof side so water runs away from the gland rather than tracking down the wire. Troubleshooting: if the cable binds while pulling, do not force it — back it out and check for a hidden obstruction or a too-tight bend radius.
5. Mount the charge controller near the batteries — but do not connect anything yet. Screw the controller to a wall or cabinet surface in a dry, ventilated spot as close to the battery bank as practical, keeping the controller-to-battery cable run short to minimize voltage drop. Leave the clearance around the unit that its manual specifies for heat dissipation, and never mount it directly above batteries where gases or heat can rise into it. Install your two protection devices now: a fuse or breaker in the panel-to-controller line and another in the controller-to-battery line, both sized per the component manuals and both left open (or fuses left out) for now.
6. Connect the controller to the battery bank first. This ordering matters: nearly all charge controllers must sense battery voltage before panel power is applied, and connecting panels first can damage the unit or leave it misconfigured. Crimp lugs onto your battery cable, connect controller battery terminals to the bank observing polarity, insert the battery-side fuse or close the breaker, and confirm the controller powers up and displays battery voltage. Then program the controller for your battery chemistry — lithium, AGM, and flooded profiles use different charge voltages, and the wrong profile will chronically undercharge or overcharge your bank. Troubleshooting: if the controller doesn’t power on, verify polarity with a multimeter at the controller terminals and check the fuse; a reversed connection often blows the fuse instantly or trips internal protection.

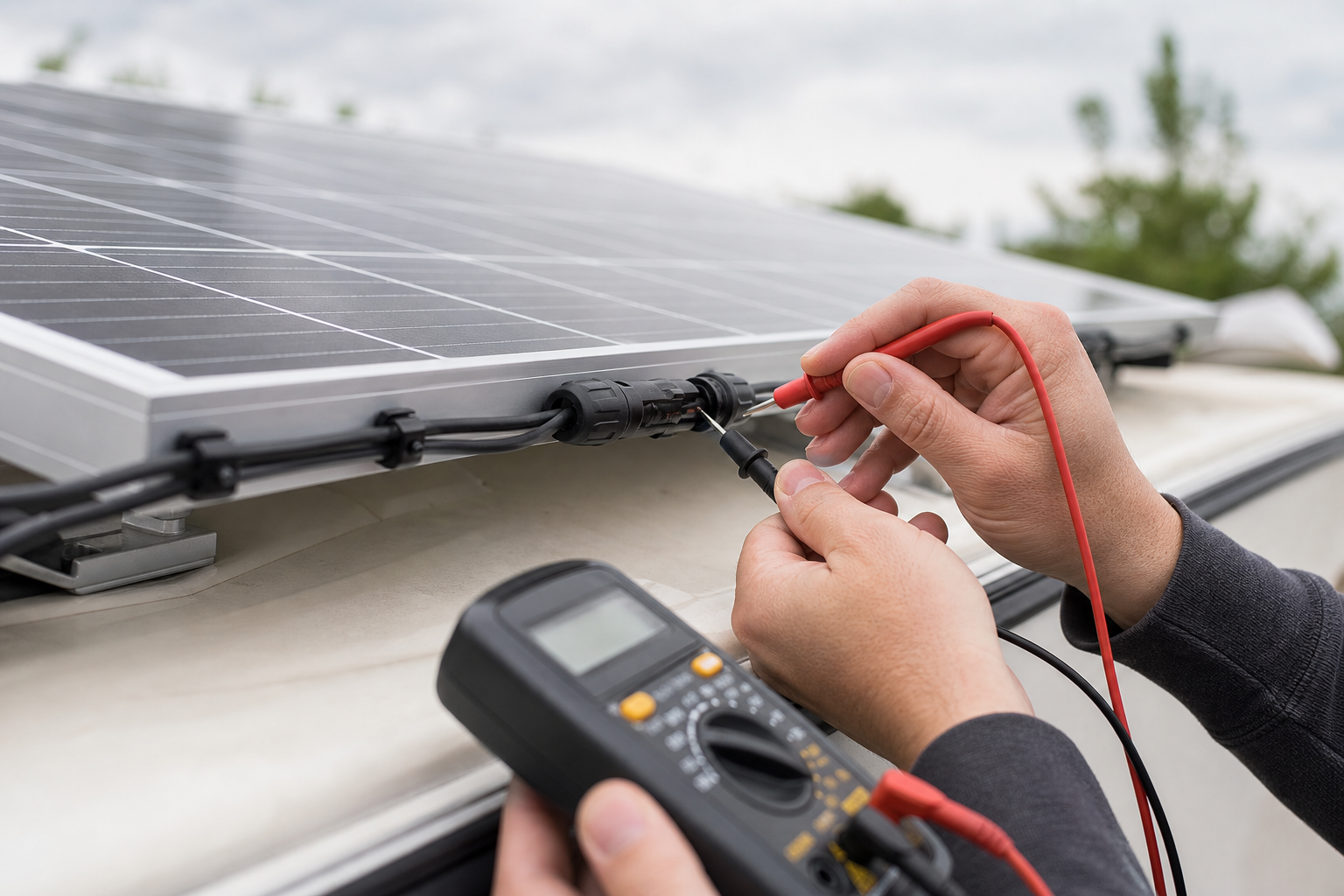

7. Connect the panels to the controller. On the roof, join the panels in your planned series or parallel configuration using MC4 connectors (branch connectors for parallel). Before landing the wires on the controller, measure open-circuit voltage across the array leads with your multimeter and confirm it matches the expected value from your wiring plan — this catches a reversed or missed connection while it’s still easy to fix. Ideally cover the panels (cardboard or a blanket) so they’re not producing under load, connect the PV leads to the controller’s solar input observing polarity, then insert the PV fuse and uncover the panels. The controller should register incoming power in daylight. Troubleshooting: if the array voltage reads roughly one panel low, one series connection is open or one panel is reversed — check each MC4 junction. If the controller shows voltage but no charging current, verify the battery isn’t already full and that the controller’s load/charge status isn’t in an error state per the manual.
8. Wire the inverter (if using one). Mount the inverter close to the battery bank in a ventilated space and connect it directly to the battery terminals — never through the charge controller’s load terminals, which are not rated for inverter current. Use thick, short cables with crimped lugs and a correctly sized fuse or breaker within inches of the battery positive terminal. Confirm the inverter’s chassis ground is connected per its manual. Troubleshooting: if the inverter alarms or shuts down under load, the most common causes are undersized battery cable, a loose lug creating voltage sag, or a load exceeding the inverter’s surge capacity — check the appliance’s nameplate against the inverter’s rating.
9. Test the complete system methodically. In full daylight, verify: the controller shows the array producing power; battery voltage rises (or charge current flows) while charging; the controller’s charge stage indicator behaves per the manual; and your DC loads and inverter run normally. Use the clamp meter to spot-check current on the PV and battery lines against expectations. Then run a real-world test — camp on the system for a night and a day, watching state of charge morning and evening. Troubleshooting: if daily production seems low, check for partial shading across the day, dirty panels, loose MC4 connections (a poor crimp is the classic culprit), voltage drop from undersized or overly long wire runs, and an incorrect battery profile causing early charge termination.
10. Do a final roof and sealing inspection. After the sealant has cured, go back on the roof and inspect every bracket foot, screw head, and the cable gland for complete sealant coverage with no voids or pinholes. Gently tug each panel to confirm it’s rigid. Check inside the rig around the penetration after the first rain (or a hose test) for any sign of moisture. Photograph the finished roof layout and wiring — future you will thank present you when diagnosing an issue from inside the rig.

Safety Considerations

• Roof falls are the biggest hazard. Work on a dry roof in non-slip shoes, know your roof’s weight limits (some RV roofs are not fully walkable), use a stable ladder, and have a helper spot you and pass up panels rather than carrying them one-handed.
• Panels are live whenever light hits them. There is no off switch on a solar panel. Cover panels or work with connectors unmated when wiring, and never connect or disconnect MC4 connectors under load — doing so can draw an arc.
• Batteries store serious energy. Remove metal jewelry, use insulated tools, and never let a wrench bridge battery terminals. Fuse the battery side of every circuit as close to the battery as practical; an unfused short on battery cable can start a fire.
• Follow the connection order: battery to controller first, panels second. Reversing this can damage the controller or cause it to misread system voltage.
• Size wire correctly and protect it. Undersized wire overheats; unprotected wire chafes through insulation on road vibration. Use ampacity tables from your component manuals, and secure every run with clamps and grommets at pass-throughs.
• Ventilate battery and inverter spaces. Flooded lead-acid batteries vent hydrogen while charging, and inverters generate heat under load — neither belongs in a sealed, unventilated cabinet.

This guidance is general in nature; always follow your component manuals and local electrical codes, and consult a qualified professional if you are unsure about any step.

FAQs

• Can I install RV solar panels myself? Yes — a basic rooftop system is well within reach of a careful DIYer with common tools, and most installs are finished in a weekend. The two areas that demand the most care are roof sealing (to prevent leaks) and wiring (correct polarity, fusing, and wire gauge), so read your component manuals thoroughly and test each connection with a multimeter as you go.
• How do I hook up solar panels to my RV? The standard signal path is panels → fuse or breaker → charge controller → fuse or breaker → battery bank, with an inverter wired directly to the batteries if you need AC power. Always connect the controller to the battery before connecting the panels, and never wire panels straight to a battery without a controller.
• How many solar panels do I need to run my trailer? There is no universal answer — it depends entirely on your daily energy use. Add up the watt-hours per day of every device you run (from nameplates, datasheets, or clamp-meter measurements), divide by the usable sun hours where you camp, apply a real-world efficiency loss factor, and size your array to that result with headroom for cloudy days.
• Can a solar panel run my refrigerator? Possibly, but you must check your specific fridge’s consumption on its nameplate or datasheet rather than relying on generic figures, because models vary widely. The panel only produces during daylight, so what really determines success is whether your battery bank can carry the fridge overnight and through cloudy weather while the array replenishes it by day.
• Should I wire my panels in series or parallel? Series wiring adds panel voltages, which helps an MPPT controller perform in low light and allows thinner wire, but one shaded panel reduces the whole string. Parallel wiring adds current and keeps each panel independent under partial shade — often the better choice when roof obstructions cast shadows — at the cost of thicker wiring. Whichever you choose, confirm the controller’s voltage and current limits accommodate the configuration.
• Do I have to drill holes in my roof? Drilled brackets sealed with butyl tape and self-leveling lap sealant are the most secure option for rigid panels at highway speed. If you want to avoid holes, flexible panels can be adhesive-mounted with VHB tape or panel adhesive, though you will still typically need one sealed penetration (or an existing chase like a refrigerator vent) for the cable entry.

Conclusion

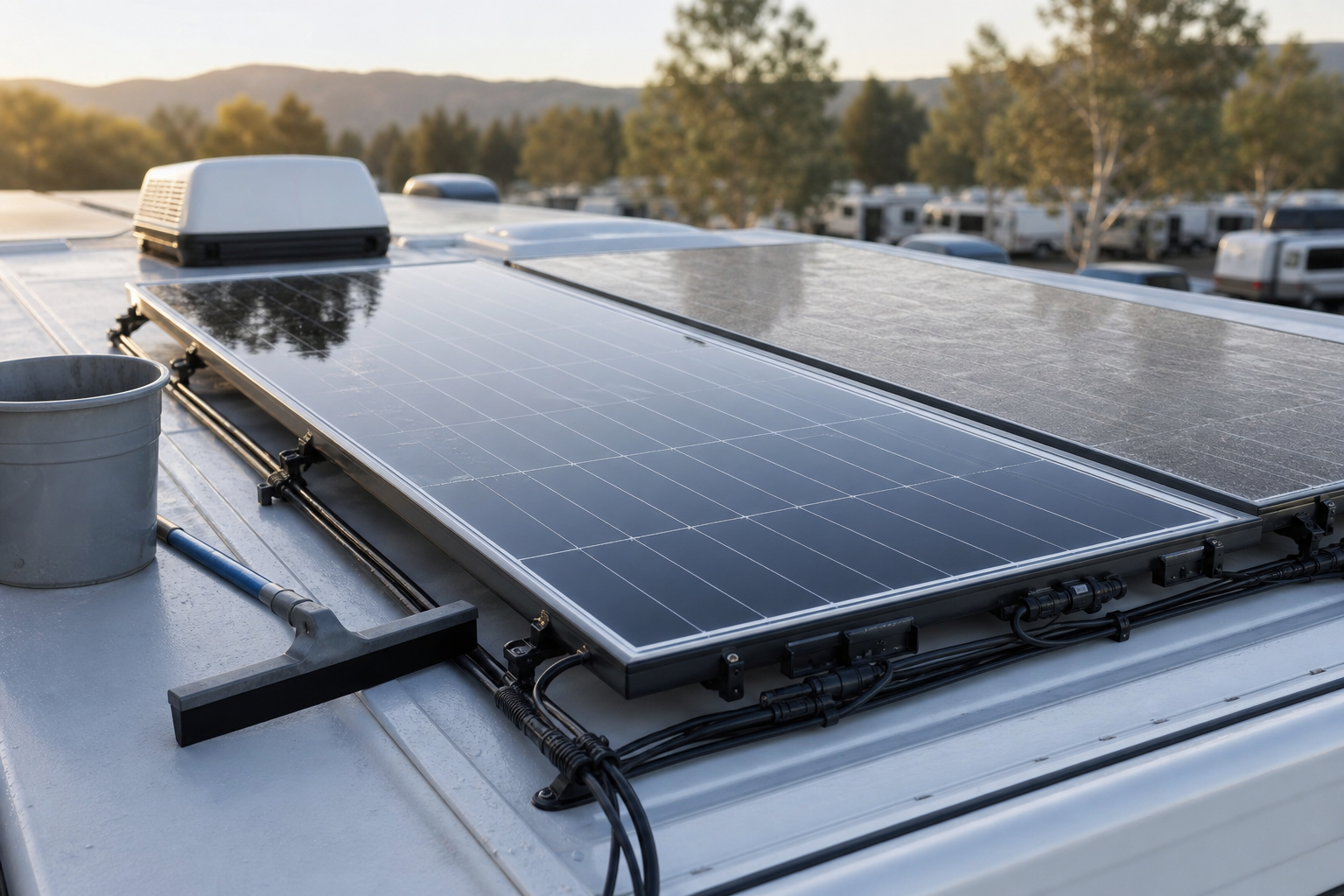

Installing RV solar step by step comes down to disciplined sequencing: audit your loads with real measured numbers before you buy anything, choose a controller and wire gauge that match your array’s voltage and current, mount and seal panels with the assumption that water will find any gap, connect the battery before the panels, and program the controller for your exact battery chemistry. The mechanical work is a weekend; the planning is what makes it a system that quietly charges for years instead of a leak or an electrical fault waiting to surface. Keep panels clean, reinspect the roof sealant seasonally, and retorque connections after your first long trip, since road vibration loosens what workshops tighten.

Before you call the job done, run this verification checklist

• ☐ Every bracket foot, screw head, and the cable gland is fully covered in cured, compatible sealant with no voids.
• ☐ Panels are rigid under a firm tug and nothing rattles or lifts at the edges.
• ☐ Array open-circuit voltage measured at the controller matches your series/parallel plan from the panel datasheets.
• ☐ Fuses or breakers are installed on both the PV-to-controller and controller-to-battery circuits, sized per the manuals.
• ☐ Charge controller is programmed for your battery chemistry and shows the correct charging stage in daylight.
• ☐ Charging current confirmed with a clamp meter, and battery state of charge rises during a full sunny day.
• ☐ Inverter (if installed) runs your largest planned AC load without alarms or voltage sag.
• ☐ All interior wiring is secured against chafe, with grommets at pass-throughs and a drip loop at the roof gland.
• ☐ Interior around the roof penetration checked for moisture after the first rain or a hose test.
• ☐ Photos taken of the finished roof layout and wiring for future troubleshooting reference.
